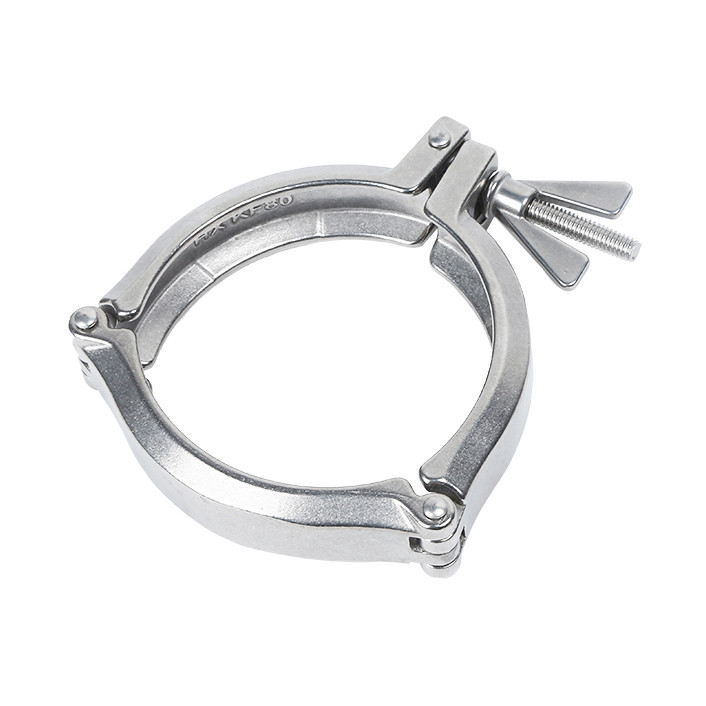

KF 3 pieces Clamps SS304

Categories	KF Vacuum Clamps
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product Name	KF 3 pieces Clamps SS304
Size	KF16,KF25,KF40
Seal material	Viton,Silicone,Buna-N seal
Helium Leak Test	1×10 -9 Pa・m³/sec or less
FOB port	Ningbo Port, Tianjing Port,Shanghai Port
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Aug 30,2025

Detail Information

KF 3 pieces Clamps SS304 Feature

Advantage

●Sealing performance: rubber ring seal, good adaptability

●Connection and installation: quick loading and unloading, low installation accuracy requirement.

●Mechanical properties: high strength, good vibration resistance.

●Scope of application: wide temperature range, a variety of field applications

KF 3 pieces Clamps SS304 specifications

Product Name	KF 3 Pieces Clamps SS304
Brand	RUIJIA
Size	KF16,KF25,KF40
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
