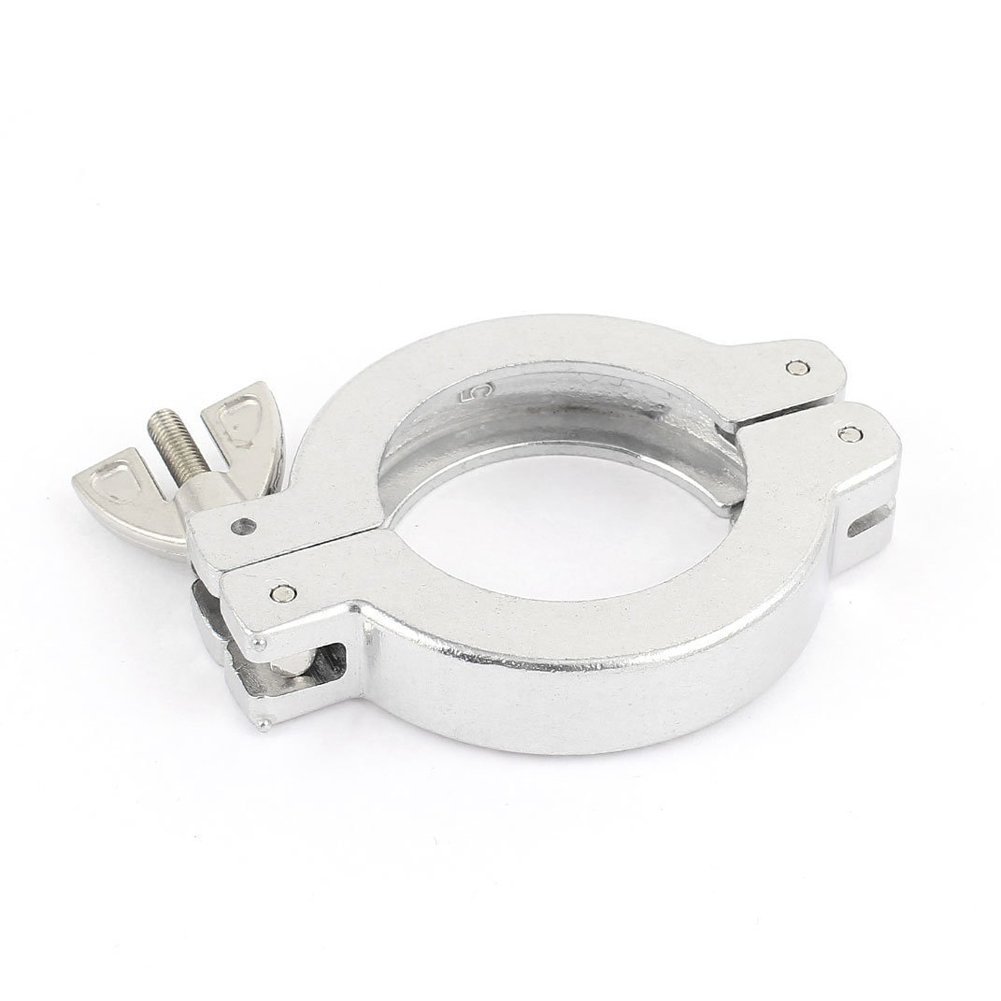

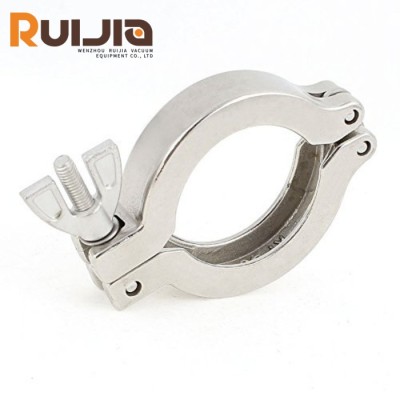

KF Vacuum Clamps Double Pin Aluminium

Categories	KF Vacuum Clamps
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Size	KF10,KF25,KF40,KF50.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union
Update Time	Aug 14,2025

Detail Information

KF Vacuum Clamps Double Pin Aluminium feature

●Material characteristics: light weight, corrosion resistance.

●Sealing performance: rubber ring seal, good adaptability

●Connection and installation: quick loading and unloading, low installation accuracy requirement.

●Mechanical properties: high strength, good vibration resistance.

●Scope of application: wide temperature range, a variety of field applications

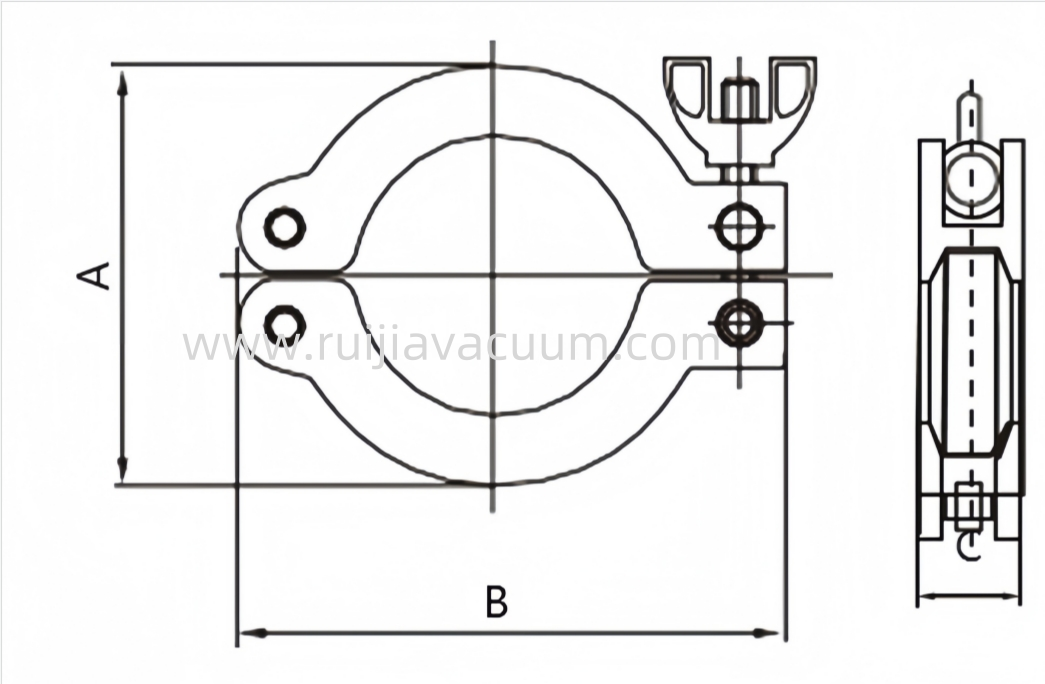

KF Vacuum Clamps Double Pin Aluminium specifications

Product Name	KF Vacuum Clamps Double Pin Aluminium
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
