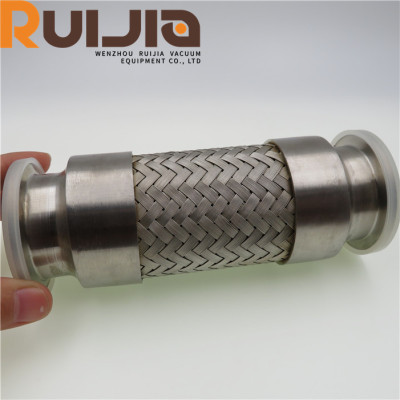

KF Braided bellows vacuum flexbile hose KF16-KF50 SS304/316L
KF Braided bellows vacuum flexbile hose KF16-KF50 SS304/316L
| Categories | KF Vacuum Bellows |
|---|---|
| Brand | RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER |
| Bellows Type | Vacuum KF Braided Flexible Hoses |
| Material | SUS304, SUS316L |
| Standard | KF / ISO / CF flange type |
| Temperature | -200~800℃ |
| Elasticity of bellows | 40% |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Update Time | Jan 26,2025 |
Detail Information
Vacuum KF Braided Flexible Hoses feature
KF Braided bellows Advantage
● Soft, flexible, easy to bend, vibration absorbing
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Delicate Welding to ensure integrity and reliability
Vacuum KF Braided Flexible Hoses specifications
| Bellows Type | Vacuum KF Braided Flexible Hoses |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | KF / ISO / CF flange type |
| Size Range | KF16-KF50 |
| Length | 100mm,250mm,500mm,750mm,1000mm or as customer request |
| Wall Thickness | 0.15mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
KF Braided bellows Product parameters
KF Braided Flexible Hoses
| Unit:mm | ||||
| Model No. | Flange Size | Material | A | B |
| KF16BFX250 | NW16 | SS304 | 30 | 250 |
| KF16BFX500 | NW16 | SS304 | 30 | 500 |
| KF16BFX750 | NW16 | SS304 | 30 | 750 |
| KF16BFX1000 | NW16 | SS304 | 30 | 1000 |
| KF25BFX250 | NW25 | SS304 | 40 | 250 |
| KF25BFX500 | NW25 | SS304 | 40 | 500 |
| KF25BFX750 | NW25 | SS304 | 40 | 750 |
| KF25BFX1000 | NW25 | SS304 | 40 | 1000 |
| KF40BFX250 | NW40 | SS304 | 55 | 250 |
| KF40BFX500 | NW40 | SS304 | 55 | 500 |
| KF40BFX750 | NW40 | SS304 | 55 | 750 |
| KF40BFX1000 | NW40 | SS304 | 55 | 1000 |
| KF50BFx250 | NW50 | SS304 | 75 | 250 |
| KF50BFX500 | NW50 | SS304 | 75 | 500 |
| KF50BFX750 | NW50 | SS304 | 75 | 750 |
| KF50BFX1000 | NW50 | SS304 | 75 | 1000 |
Application
